AVLink multi-touch smart board 55inch 65inch 75inch 86inch 100inch interactive whiteboard is design for conferencing, classroom and collaborative presentations.
AVLink electronic whiteboard interactive smart writing board with HDMI port could access to any PTZ Camera easily.
Built-in wifi, support wireless sharing, simple our life.
| Model | AVL-IW |
|---|---|
| Port | HDMI, VGA, USB |
| Size | 55inch 65inch 75inch 86inch 100inch |
| Operating System | Android, Windows |
| Touch | 10point/20point |
| Option | Built-in camera and microphone |

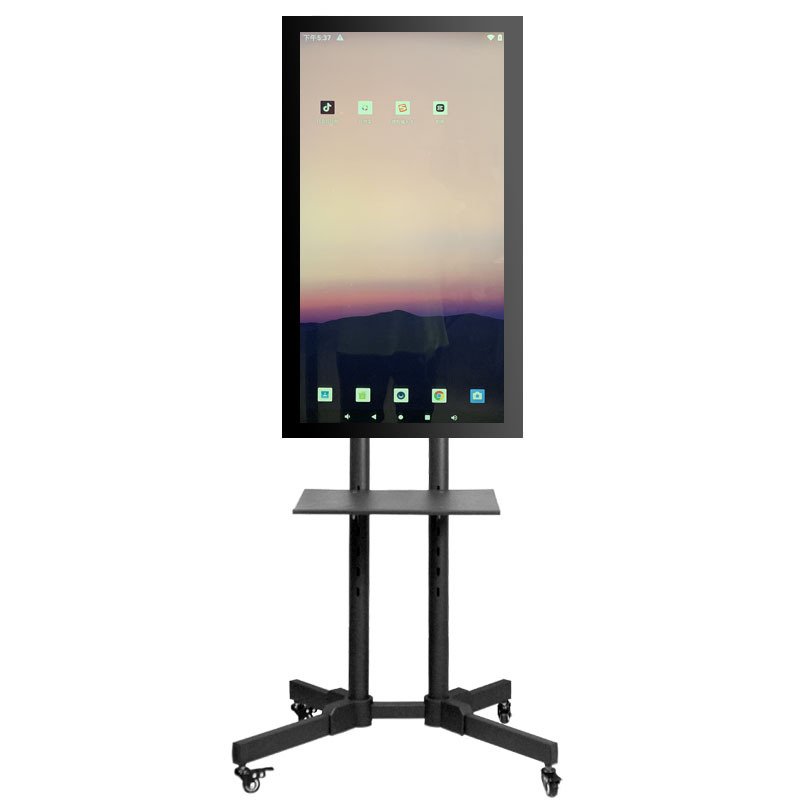

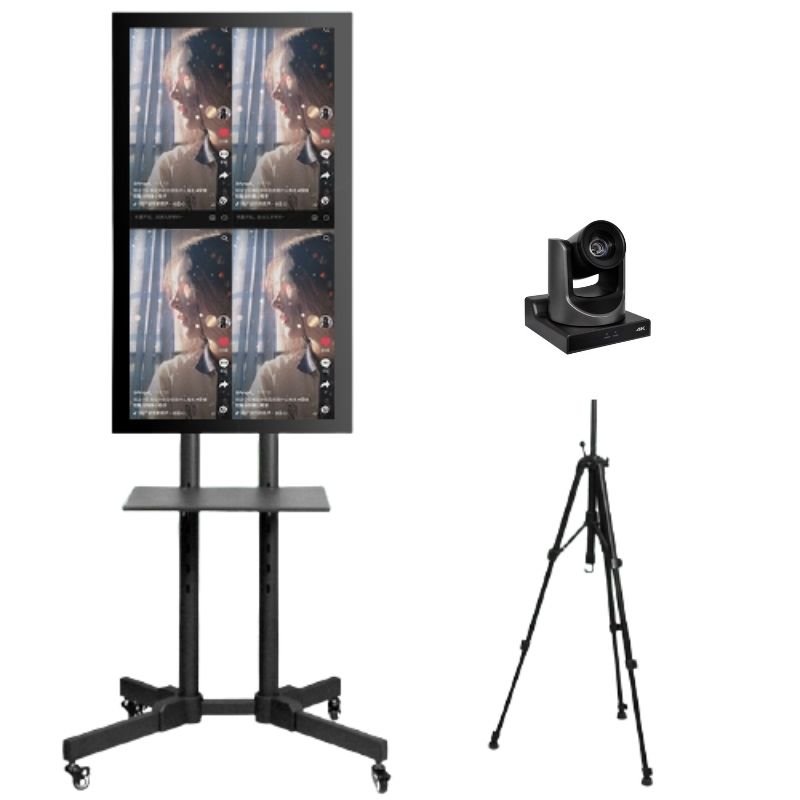

Smart Board Live Streaming Big Screen Mobile Social app Youtube Facebook Fans Interactive, 32inch, send inquiry to aliceavlink@gmail.com now!
| TFT Panel | |||
| Model No. | AVL-IW320 | AVL-IW430 | AVL-IW550 |
| Panel size | 32inch DLED | 43inch DLED | 55inch DLED |
| Display area(mm) (H*V) | 720*420 | 944*534 | 1211*682 |
| Overall size (mm) (H*V*D) | 760*460*58 | 1078*630*58 | 1265*736*58 |
| N.W/G.W(kg) | 14/20 | 22/30 | 28/39 |
| Maximum resolution | 1920*1080 | ||
| Display color | 16.7M | ||
| Aspect ratio | 16:09 | ||
| Brightness (nits) | 350cd/㎡ | ||
| Contrast | 5000:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 8ms | ||
| Life(hrs) | >50,000(hrs) | ||
| Touch system | |||
| Sensing type | IR or PCAP | ||
| Touch tool | finger, finger cover by glove, opaque objects>8mm | ||
| Surface hardness | Tempered glass with level 7 of mosh standard | ||
| Touch points | 10-20point touch | ||
| Touch drive | Free drive | ||
| Response time | <3ms | ||
| Interface | USB and HDMI | ||
| Configuration | |||
| Android OS | Android 6.0 | ||
| RAM | 2GB | ||
| ROM | 32GB | ||
| Multimedia | |||
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP version | ||
| Video | H.264, VP8, RV, WMV, AVS, H.263, MPEG4 etc, 1080P decode | ||
| Image | JPG, BMP, PNG etc | ||
| Type of image | PAL/SECAM/NTSC(option) | ||
| Type of voice | BG/DK/I/L | ||
| OSD language | Chinese, English, Spanish etc | ||
| Power | |||
| Power supply | AC180~240V 50 /60 HZ | ||
| Power consumption | 55W | 60W | 90W |
| Temperature | |||
| Working temperature | 0℃～50℃ | ||
| Storage temperature | 0℃~60℃ | ||
| Humidity | 10%-90% | ||
| Appearance | |||
| Application | Indoor | ||
| Color/appearance | Black, white | ||
| Installation | Free Wall-mounted VESA bracket, extra 120usd for Floor standing bracket with movable locked wheels | ||
| Package | Carton box with PE Foam, wooden box as final package | ||
AVLink 32inch, 43inch, 55inch Live Streaming LCD Screen Specification
AVLink 32inch 43inch 55inch LCD Smart Display Application:
