KBD2000, a network(IP Based) PTZ camera controller, is fully compatible with many PTZ camera coding protocols from the main manufacturers in the market, supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
This compact camera controller features a high-quality joystick that allows variable speed control, as well as fast camera switching, quick-set camera parameters and so on. The industrial-grade blue screen LCD module has excellent display effect with fine and clear characters.
| Protocol | Network : ONVIF, IP VISCA. Serial Port: VISCA, PELCO-D, PELCO-P |
|---|---|
| Model | KBD2000 |
PTZ Professional IP Joystick Keyboard Controller with RS485 for IP PTZ Camera Controller, suitable for conferencing, send inquiry to aliceavlink@gmail.com
● Supporting ONVIF, IP VISCA and VISCA, PELCO-D/P protocols.
● RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
● Unique control code learning function allows customers to modify the control code instructions
● Any device on the RS485 bus can be individually configured with different protocols and baud rates.
● All camera parameters can be set through the button operation.
● Metal shell, silicone key design.
● LCD display, keypad sound prompt, real-time display decoder and matrix working status.
● 4D joystick allows variable speed control to cameras
● Maximum communication distance: 1200M(0.5MM Twisted-Pair Cable)
| Port | Network: RJ45. Serial Port: RS422, RS232 | ||
| Protocol | Network : ONVIF, IP VISCA. Serial Port: VISCA, PELCO-D, PELCO-P | ||
| Communication BPS | 2400bps, 4800bps, 9600bps, 19200bps, 38400, 115200 | ||
| Interface | 5PIN, RS232, RJ45 | ||
| Joystick | 4D（up, down, left, right, zoom, lock） | ||
| Display | LCD Blue Screen | ||
| prompt tone | ON/OFF | ||
| Power Supply | DC12V±10% | ||
| Power Consumption | 6W MAX | ||
| Working Temperature | 0℃～50℃ | ||
| Storage Temperature | -20℃～70℃ | ||
| Environment humidity | ≦90%RH (nodew) | ||
| Dimensions(mm) | 320mm (L) x 180mm(W) x 100mm(H) | ||
| Upgrade | WEB Upgrading | ||

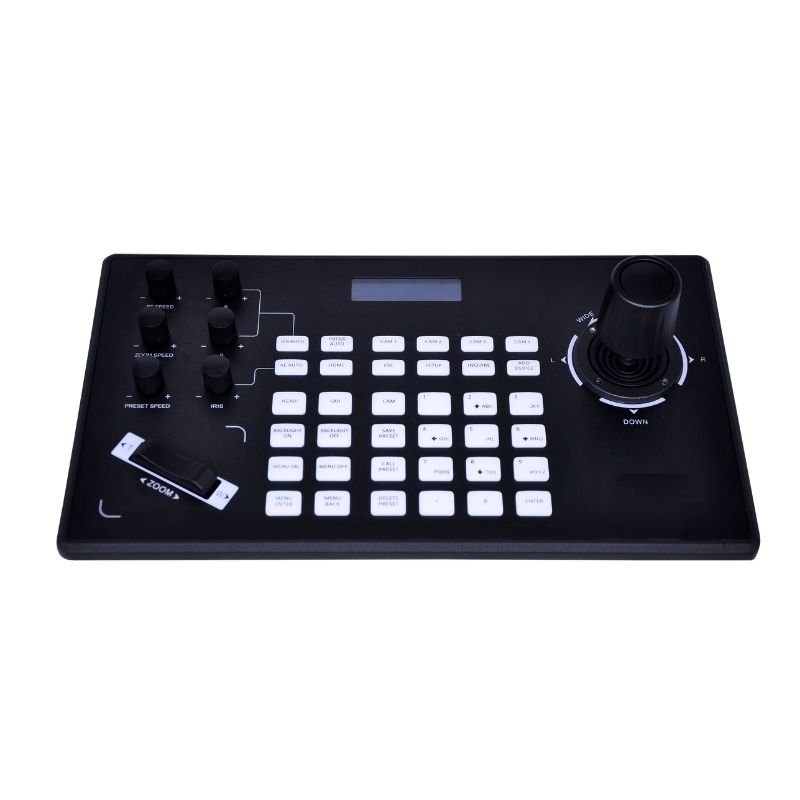

PTZ Camera Keyboard Controller AVL-KBD1000

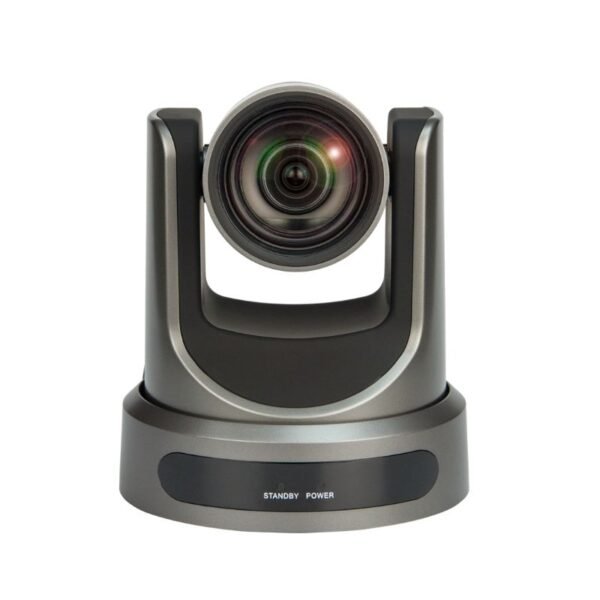

If you need a package of PTZ camera with keyboard controller, please refer to this link
