KBD2000, a network(IP Based) PTZ camera controller, is fully compatible with many PTZ camera coding protocols from the main manufacturers in the market, supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.

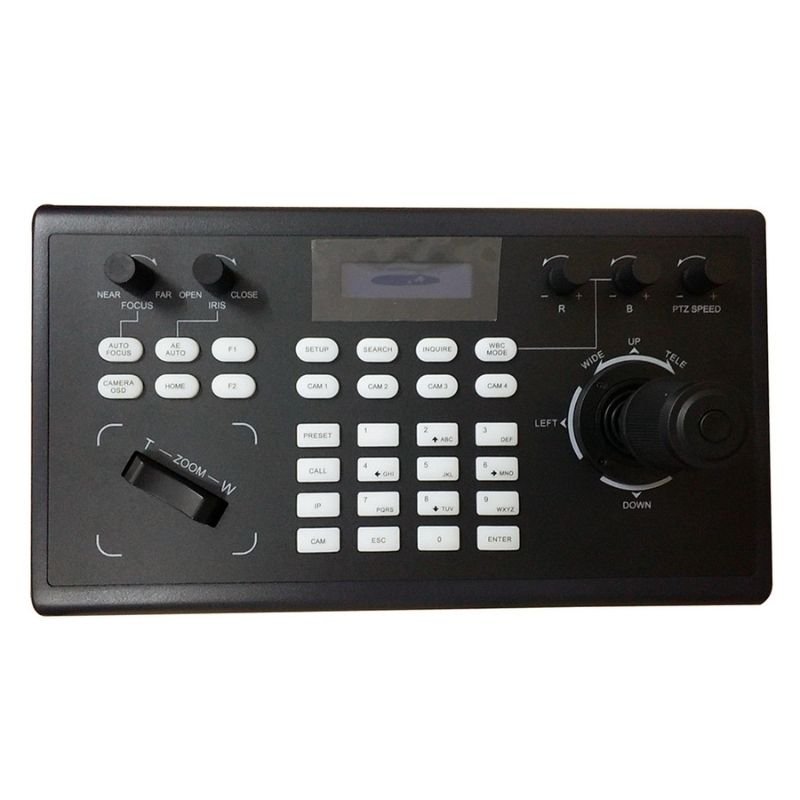

This compact camera controller features a high-quality joystick that allows variable speed control, as well as fast camera switching, quick-set camera parameters and so on. The industrial-grade blue screen LCD module has excellent display effect with fine and clear characters.
| Protocol | Network : ONVIF, IP VISCA. Serial Port: VISCA, PELCO-D, PELCO-P |
|---|---|
| Model | KBD2000 |
PTZ IP Joystick Keyboard Controller with RS485 for IP PTZ Camera Controller , suitable for conferencing, send inquiry to aliceavlink@gmail.com

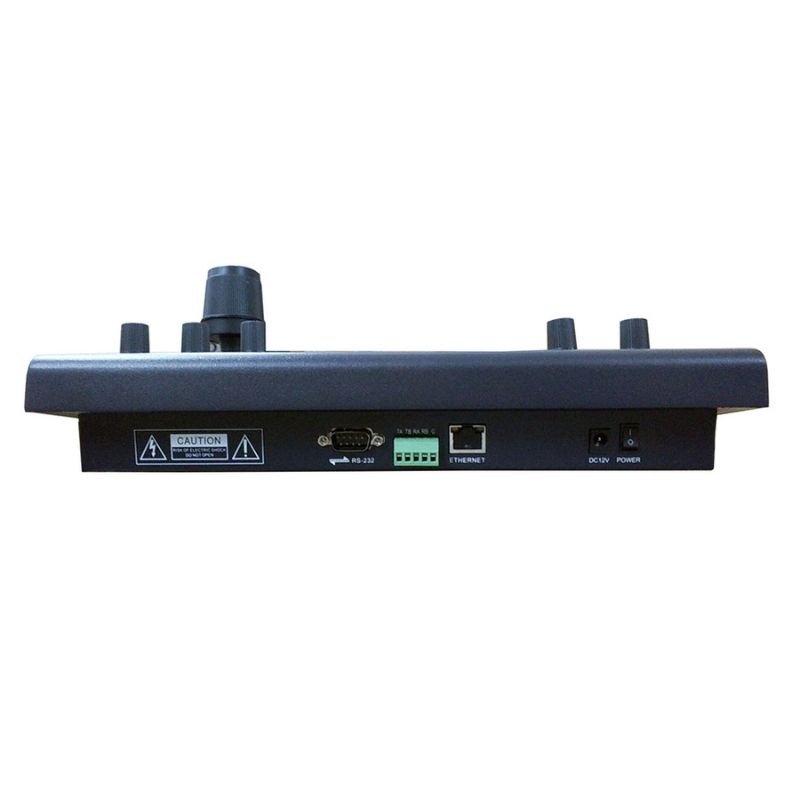

| Port | Network: RJ45. Serial Port: RS422, RS232 | ||
| Protocol | Network : ONVIF, IP VISCA. Serial Port: VISCA, PELCO-D, PELCO-P | ||
| Communication BPS | 2400bps, 4800bps, 9600bps, 19200bps, 38400, 115200 | ||
| Interface | 5PIN, RS232, RJ45 | ||
| Joystick | 4D（up, down, left, right, zoom, lock） | ||
| Display | LCD Blue Screen | ||
| prompt tone | ON/OFF | ||
| Power Supply | DC12V±10% | ||
| Power Consumption | 6W MAX | ||
| Working Temperature | -10℃～50℃ | ||
| Storage Temperature | -20℃～70℃ | ||
| Environment humidity | ≦90%RH | ||
| Dimensions(mm) | 320mm（L）X179.3mm（W）X109.9mm(H) | ||
| Upgrade | WEB Upgrading | ||
PTZ Camera Keyboard Controller Specification
