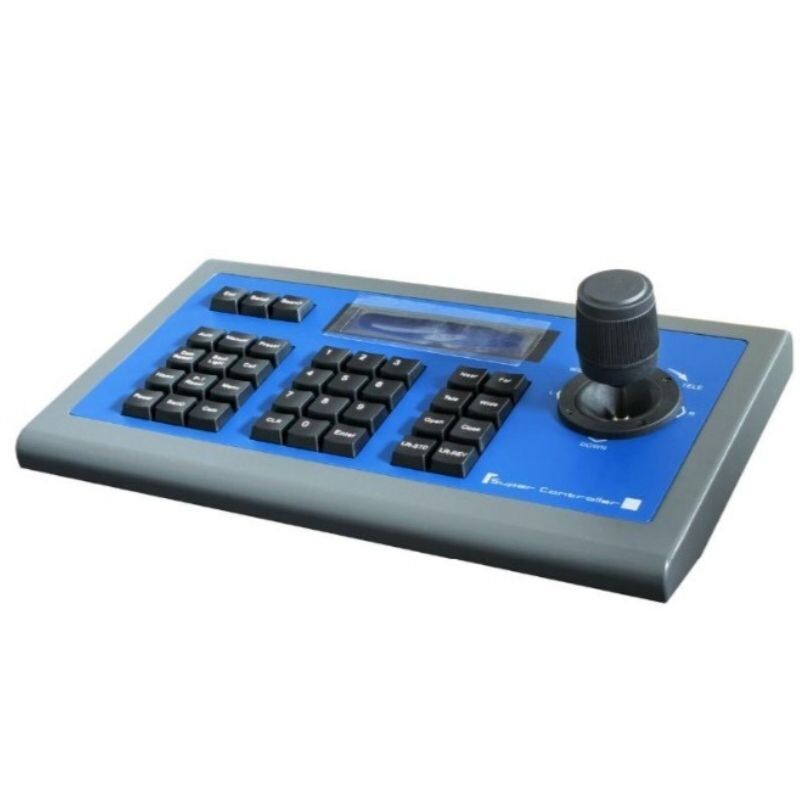

The AVL-KC10 keyboard controller is a full-function system keyboard, switch easily between auto and manual focus, save and load presets, and connect multiple controllers to multiple camera’s.
It is a perfect controller for vehicle speed PTZ cameras, video conference cameras, surveillance cameras etc.
| Model | KC10 |
|---|---|
| Interface | RS232, RS485 |
| Protocol | Visca, Pelco-D/P |
PTZ Camera RS232 Serial Controller Joystick, RS485 controller, Chinese factory cheap price, send inquiry to aliceavlink@gmail.com now!
| Specification | |||
| Support Protocol | Pelco-D, Pelco-P(Pelco), Visca(Sony) | ||
| Baudrate | 1200, 2400, 4800, 9600, 19200 | ||
| Control address | Control 255 pcs at most, address code:0-254 | ||
| Communication method | RS485 half-duplex, RS422 duplex, RS232 serial port, 10M network(selected), USB（selected） | ||
| Cascade | 16sub-control at most, controller ID:0-15 | ||
| Joystick | 3D(control:up, down, left, right, zoom) | ||
| Interface | 10 PIN pressing line port, DB9 connector | ||
| LCD Screen | Blue screen | ||
| Warning tone | Key touch beep ON/OFF | ||
| P/T/Z Control | Support | ||
| Connectors | 1 x RS232, max distance: 10m | ||
| 1 x RS485/RS422, max distance: 1200m | |||
| Input Voltage | DC 12V | ||
| Current Consumption | 0.5A(Max) | ||
| Operating Temperature | 0°C ~ 50°C | ||
| Storage Temperature | ‘-20°C ~ 70°C | ||
| Power Consumption | 6W(Max) | ||
| Dimensions | 360mm × 190mm × 55mm | ||
| Weight | 2.8Kg | ||
PTZ Camera Keyboard Controller Specification
