KBD2000, a network(IP Based) PTZ camera controller, is fully compatible with many PTZ camera coding protocols from the main manufacturers in the market, supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
This compact camera controller features a high-quality joystick that allows variable speed control, as well as fast camera switching, quick-set camera parameters and so on. The industrial-grade blue screen LCD module has excellent display effect with fine and clear characters.
Protocol | Network : ONVIF, IP VISCA. Serial Port: VISCA, PELCO-D, PELCO-P |
---|---|
Model | KBD2000 |
IP RS485 keyboard controller Joystick Broadcast Camera Rs485 PTZ Controller, suitable for conferencing, live streaming, send inquiry to us
Chip | His3536DV100 | ||
System | Linux | ||
Protocol | Network : ONVIF, IP VISCA. Serial Port: VISCA, PELCO-D, PELCO-P | ||
Port | Network: RJ45. Serial Port: RS422, RS232 | ||
Accessories | Seesaw switch, knob, mechanical button, 4D joystick | ||
Beep | On/Off | ||
Screen | TFT LCD 320*240 | ||
Power Consumption | <5 W | ||
Power Supply | DC12V-2A | ||
Working Temperature | -10℃~55℃ / 14°F~131°F | ||
Work humidity | 20%~80% frostless | ||
Storage temperature | -10℃~55℃ / 14°F~131°F | ||
Storage humidity | 0%~90% frostless | ||
Packing size | 354*221*135mm | ||
Outer box size and specifications | 450*355*414mm / 6 sets | ||
Weight | 1630 G /set |

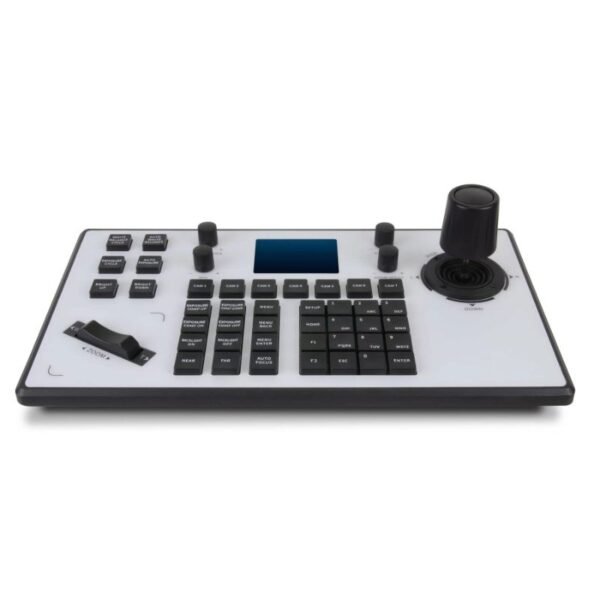

PTZ Camera Keyboard Controller KBD3000
If you need a package of PTZ camera with keyboard controller, please refer to this link
