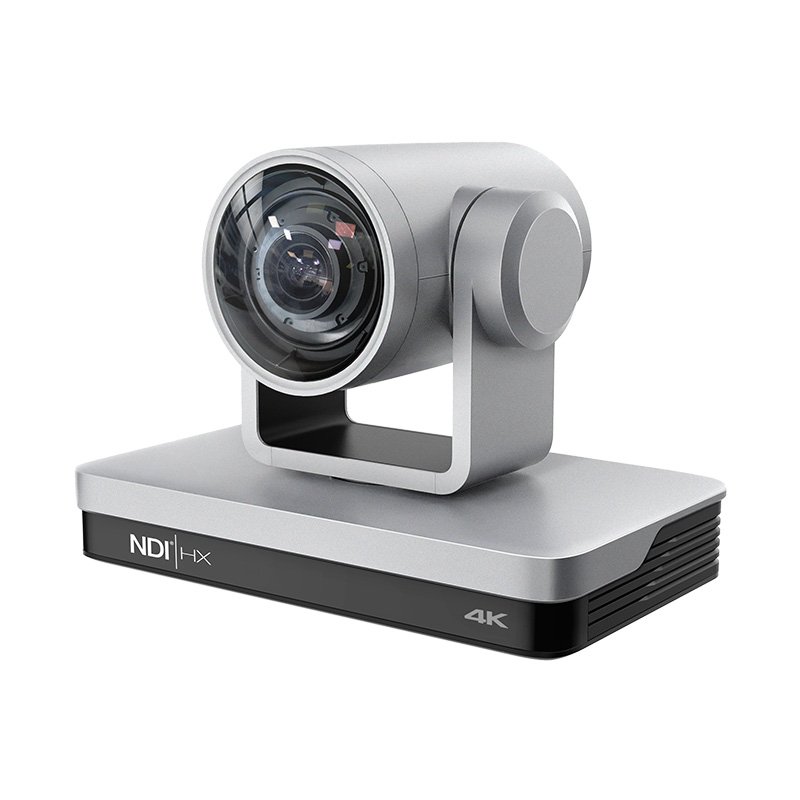

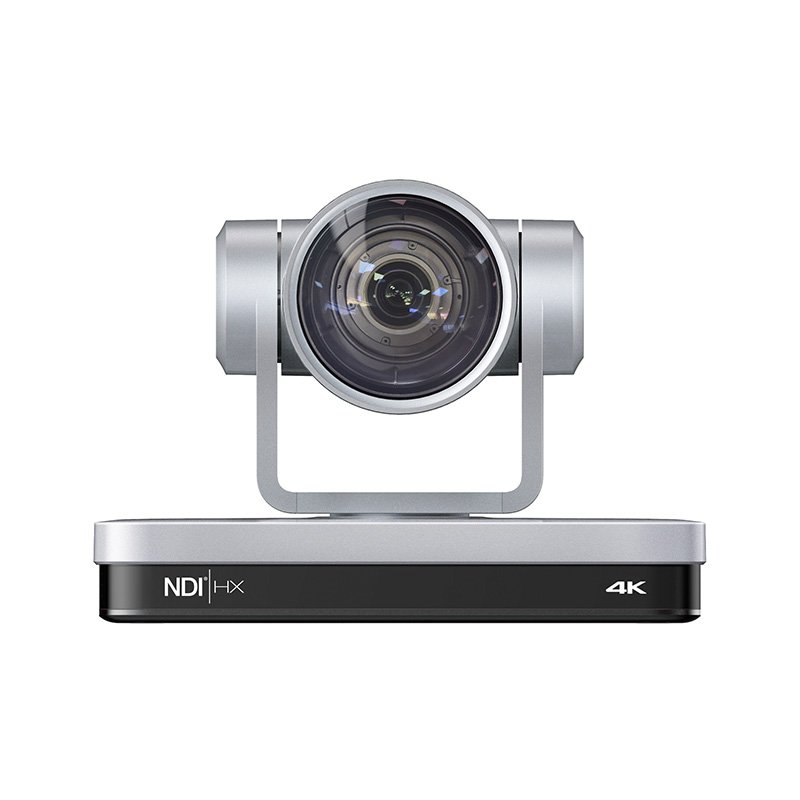

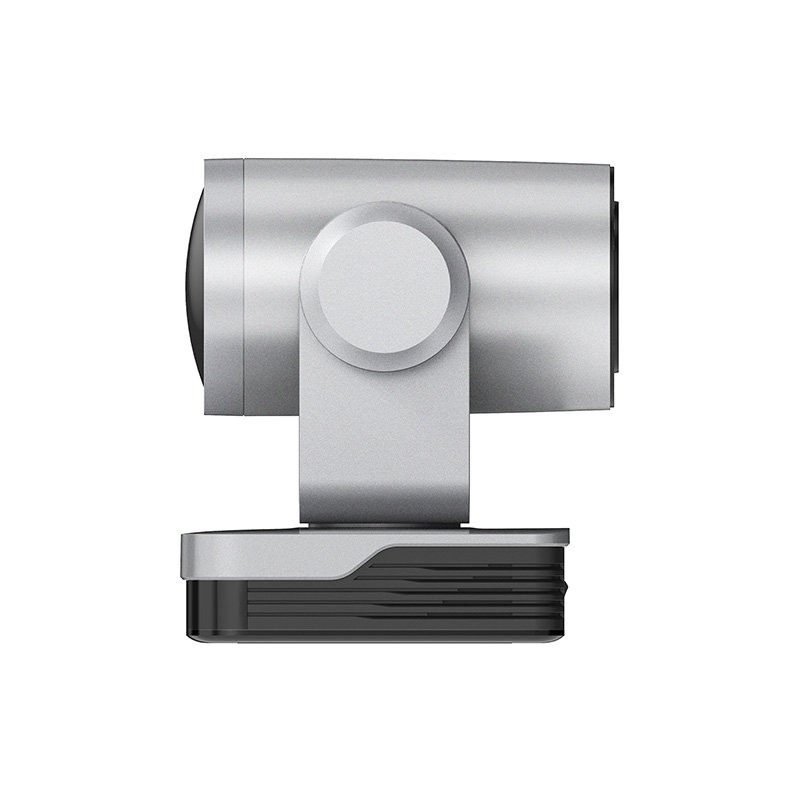

4K Ultra HD NDI Broadcast PTZ Camera UV430

4K Ultra High Definition PTZ Cameras

The UV430E2 4K Ultra HD NDI PTZ Camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.

Additional information

Model

UV430E2

Video Output

4K@60fps

Zoom

25X

Port

HDMI, SDI, USB2.0, LAN(POE)

Interface

RS232, RS485

Protocol

Visca, Pelco-D/P

Color

Black, Silver

Product Details

4K Ultra HD NDI Broadcast PTZ Camera with HDMI USB3.0 LAN PoE For vMix software, Live Streaming, Church Events, Video Conferencing, Call 0086 13113688179

4K Ultra HD NDI Broadcast PTZ Camera Highlights:

1. 4K Ultra HD Image:

Built with SONY high quality  CMOS sensor, ,with resolution up to 4K@60fps.

2. Optical Zoom Lens

12x optical zoom lens, with 80.4° FOV without distortion.

3. Leading Auto Focus Technology

Fast, accurate and stable auto focus is achieved with leading auto focus algorithm.

4. Low Noise and High SNR

Super high SNR image is achieved with low noise CMOS. The adoption of advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

5. Multiple video output interfaces

With video 4k output from HDMI, USB3.0 and LAN at the same time.

6. Multiple Audio/Video Compression Standard

Support H.264/H.265 video compression over LAN, support MJPG, H.264, YUY2 and NV12 over USB3.0 port , support AAC, MP3 and G.711A audio compression over A-in port.

7. Multiple Network Protocol
Support ONVIF, GB/T28181, RTSP, RTMP ,NDI protocols; support RTMP push mode, which can easily link with streaming media server (Wowza, FMS); support RTP multicast mode, support VISCA control protocol over Network.

8. Multiple Presets
Support up to 255 presets (10 presets by remote controller)

4K Ultra HD NDI Broadcast PTZ Camera Specification

Camera Parameters
Optical Zoom 25x
Digital Zoom 15x
FOV Horizontal: 2.5˚(tele)~ 59.2˚(wide), Vertical: 1.4˚(tele)~34.6˚(wide)
Aperture F7.1 – F171.95±5%
Image Sensor 1/2.5 Inch 4K CMOS Sensor
Effective pixels 8.51M; 16:9
Video Format HDMI Video Output Format:

3840*2160P60/50/25/59.94/29.97, 1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/59.94

SDI Video Output Format:

1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/59.94

USB2.0:

MJPG:3840*2160/1920*1080/1280*720 /1024*768   /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360   /352*288/320*240P30

H264:3840*2160/1920*1080/1280*720 /1024*768   /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360   /352*288/320*240P30

YUY2:800*448 /720*480P25、640*360 /432*240P30

NV12:800*448P25、640*480 /640*360 /432*240P30

AI Real-time Tracking, Zone Tracking
Back Panel HDMI, SDI, LAN(POE), USB2.0, A-IN, RS232-IN, RS232-OUT, RS422(Compatible with RS485), Rotary Dip Switch, DC12V Power Supply, Power Switch
Accessory  Power Adapter, RS232 Cable, USB2.0 Cable, Remote Control, User Manual

4K Ultra HD NDI PTZ Camera Specification Download



AVLink 4K PTZ Camera Application:

  • Live broadcasting / streaming
  • Video Conferencing
  • Tele-education
  • Tele-medicine
  • Lecturer capture
  • Distance interview and so on

 For more PTZ Camera solution, please contact our sales director
