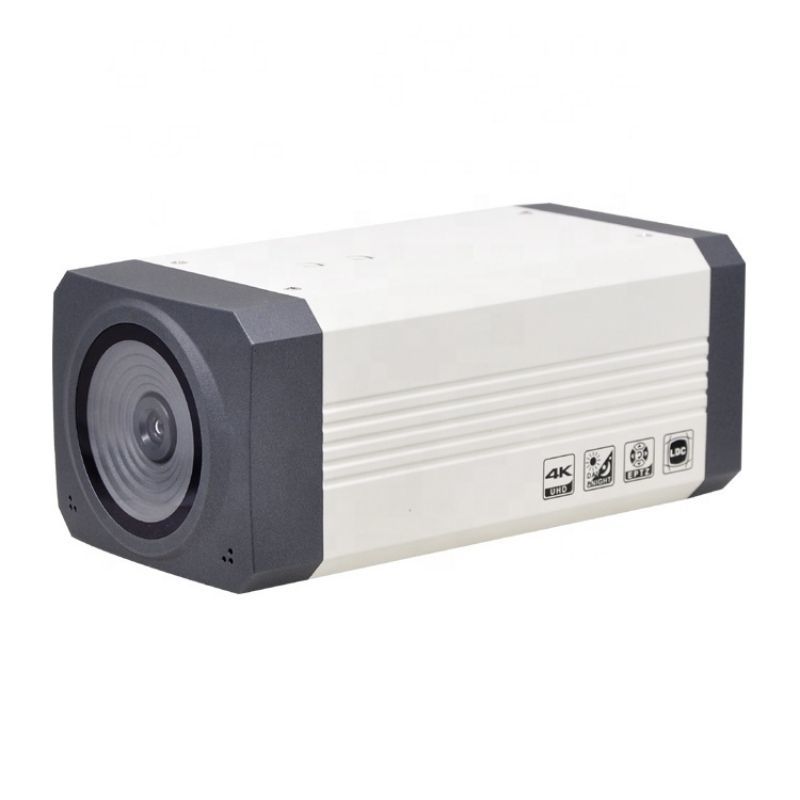

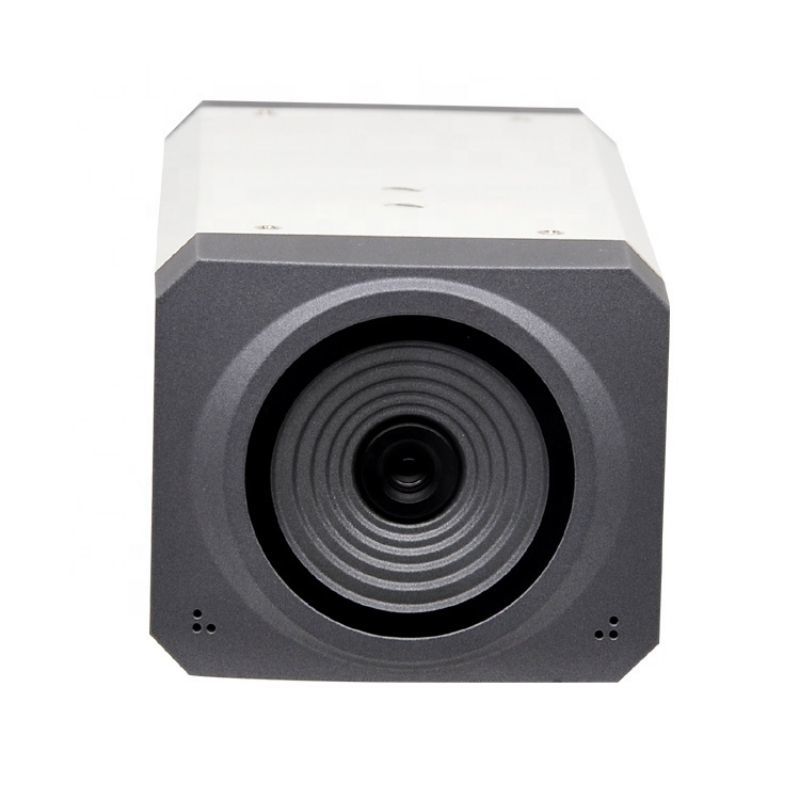

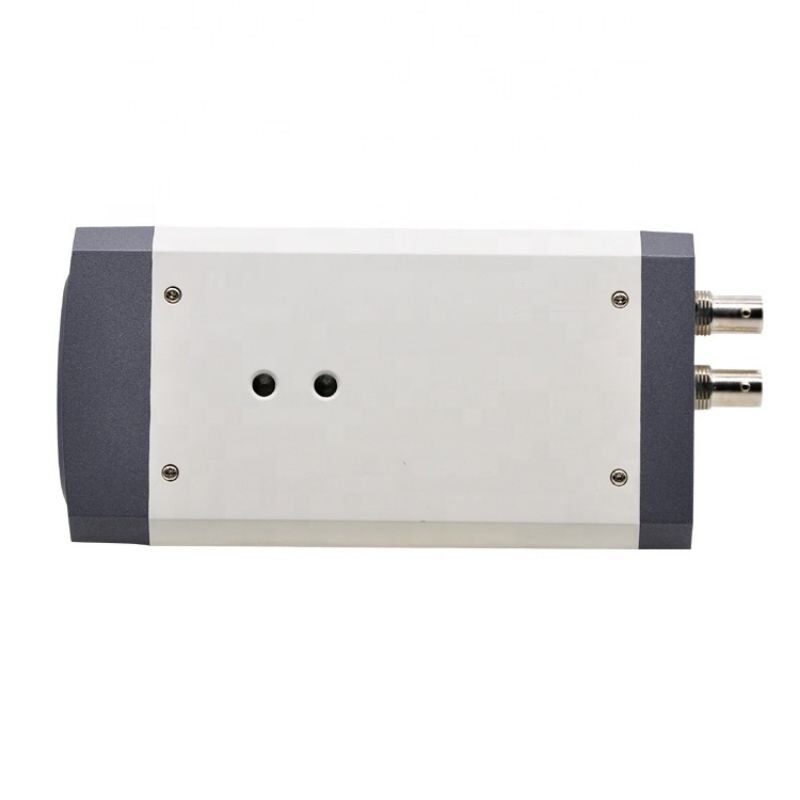

AVLink EPTZ (electronic Pan, Tile and Zoom) camera 4K@15fps, view angle 46° / 84° / 120° for options, PoC & PoE supported.
| Video Output | 4K@15fps |
|---|---|
| Port | SDI, USB2.0, LAN |
| Interface | RS232, RS485 |
| Protocol | Visca, Pelco-D/P |
4K Live Streaming EPTZ Box Camera Professional IP Broadcast SDI Video Camera Church Events, send inquiry to aliceavlink@gmail.com
Are you looking for affordable ePTZ Box camera, with a target price?
If you want to buy a cheap price but with powerful box camera, and to use it in Live streaming, broadcasting etc, here it is!
AVLink ePTZ box camera is specially design for such amazing application. Only a tiny penny to get a wow product!
|

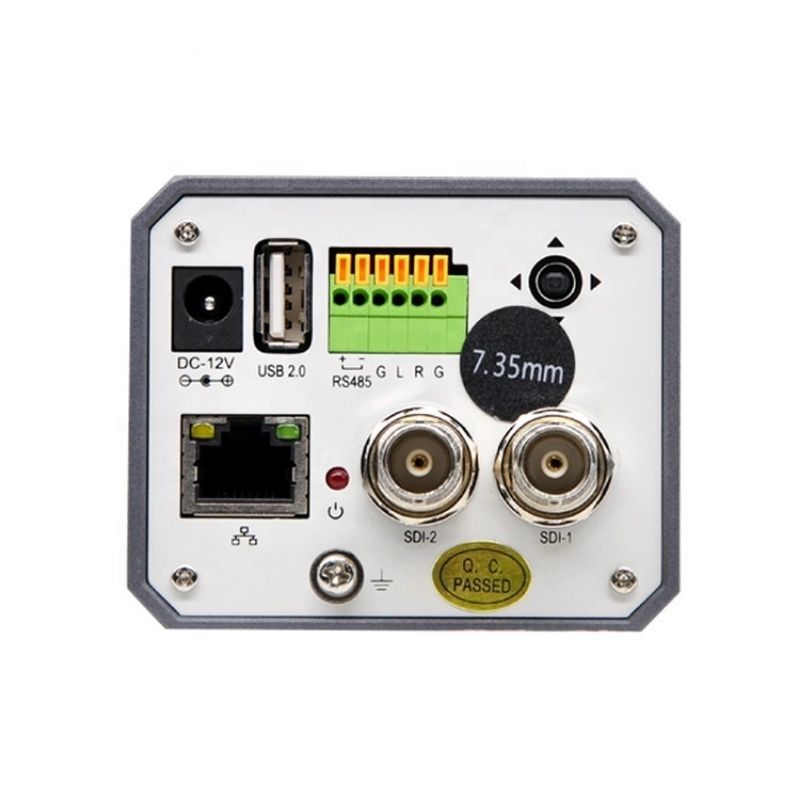

Input/Output Interface
|
||
|
HD Output
|
2x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard, Support PoC
|
|
|
Network Interface
|
1xRJ45: 10M/100M/1000M Ethernet Interface, PoE Support
|
|
|
Audio Interface
|
1-ch: Line In, 3pin Phoenix Port
|
|
|
Communication Interface
|
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
|
|
|
USB Interface
|
1xUSB2.0, type A
|
|
|
Power Jack
|
DC005 type (DC 12V)
|
|
