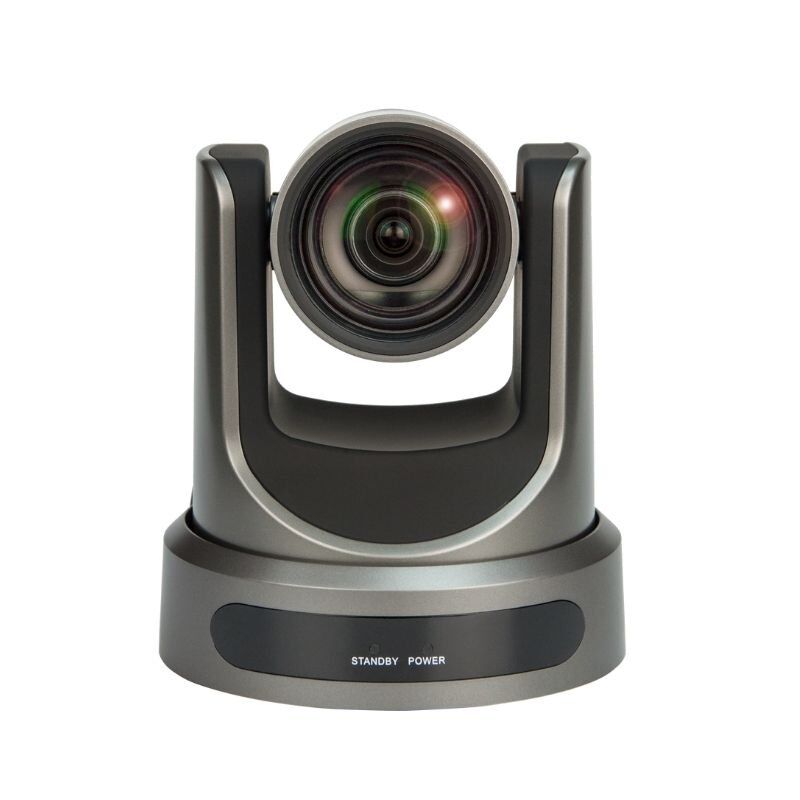

1080P60 NDI 12x/20x30x Optical PTZ Camera Broadcast and Conference, HDMI, 3G-SDI, IP Streaming, CVBS

1080P60 High Definition PTZ Cameras

This SDI PTZ Camera is a 1080P60fps cameras are equipped with a Panasonic CMOS sensor combined with a high-quality glass lens with 12x/20x/30x optical zoom.

Control these cameras over RS232/485 with any keyboard controller that supports NDI, UVC, Onvif, Visca, Pelco-P/D protocols.

Additional information

Model

HD600

Sensor

Panasonic

NDI

Yes

Video Output

1080P60

Zoom

12x, 20x, 30x

Port

SDI, HDMI, LAN, USB 3.0

Interface

RS232, RS485

Protocol

NDI, Onvif, UVC, Visca, Pelco-D/P

Color

Dark Gray, White

Product Details

1080P60 NDI 12x/20x30x Optical PTZ Camera Broadcast and Conference, HDMI, 3G-SDI, IP Streaming, CVBS control. Call 0086 13113688179

1080P60 NDI 12x/20x30x Optical PTZ Camera Broadcast and Conference, HDMI, 3G-SDI, IP Streaming, CVBS control Highlights:

  • NewTek NDI

    Built-in NDI compatibility for NewTek’s industry leading IP technology. Instantly accessible over your network for audio, video and PTZ camera control.

  • PoE (Power over Ethernet)
  • 1080P60 High Definition

Adopt new Sony 1/2.5′ sensor with max up to 851Mega pixels, realize high performance 4K (3840×2160)video output, downward compatible with 1080P,720P and other resolutions.

  • 72.5° Wide angle lens + 12X optical zoom (AVL-HD612)

High-performance 1080P60, 12X optical zoom, horizontal angle reach up to 72.5°.

  • 60° Wide angle lens + 20X optical zoom (AVL-HD620)

High-performance 1080P60 lens, 20X optical zoom, horizontal angle reach up to 60°.

  • 60.7° Wide angle lens + 30X optical zoom (AVL-HD630)

High-performance 1080P60 lens, 30X optical zoom, horizontal angle reach up to 60.7°.

  • H.264, H.265 and MJPEG streaming over RJ-45 LAN port

The first H.265 encoding support conference video camera in the world, enabling full HD 1080p/60fps video stream by ultra-low bandwidth.

  • RTMP & RTSP IP streaming
  • Multiple interfaces

HDMI 2.0, 3G-SDI, effective transmission distance over 150M.

Support HDMI, 3G-SDI, IP streaming simultaneously.

  • Remote control

Multiple ways of control, RS232, RS485, Network and USB.

1080P60 NDI 12x/20x30x Optical PTZ Camera Broadcast and Conference, HDMI, 3G-SDI, IP Streaming, CVBS control Specification

AVL-HD612 AVL-HD620 AVL-HD630
Camera
Video CMOS Sensor 1/2.7”, CMOS, Effective Pixel: 2.07M
Frame Rate 1080P60/59.94/50/30/29.97/25,1080I60/59.94/50,720P60/59.94/50/30/29.97/25, 480I60, 576I50
Lens Zoom 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x, f4.42mm ~ 132.6 mm, F1.8 ~ F2.8
Horizontal Field of View 72.5° ~ 6.9° 3.36°(T)-60.7°(W) 60.7° ~ 2.28°
Vertical Angle of View 44.8° ~ 3.9° 34.1° ~ 1.89° 34.1° ~ 1.28°
Min Lux 0.05 lux @ (F1.8, AGC ON)
Shutter Speed 1/30s to 1/10000s
White Balance Auto, Indoor, Outdoor, One-Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Image Freeze Support
Ceiling Installation Supported
Vertical Flip & Mirror Supported
Working environment INDOOR
Mechanical
Pan Rotation Angle ±170°
Tilt Rotation Angle -30°~ +90°
Pan Speed (per second) 1.7° ~ 100°/s
Tilt Speed (per second) 1.7° ~ 69.9°/s
Presets 255 Presets
Number of Preset 0.1°
PTZ Control Protocol Sony VISCA and PELCO D/P
IP Features
Video Compression H.265/H.264/MJEPG
H.265 Profiles Main
H.264 Profiles Base, Main, High
Web stream Main stream, sub stream
Main Stream Resolution 1920×1080, 1280×720, 1024×576
Sub Stream Resolution 720×576, 720×480, 320×240
Bit Rate 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K,3072K, 4096K, 5120K, 6144K, 8192K optional, customize
Bit Rate Type Variable Rate, Fixed Rate
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Support protocols TCP/IP, HTTP, RTSP, RTMP, DDMS, PPPoE, SMTP, UPnP, SNMP, Onvif, DHCP, Multicast, etc.
Video Stream Main Stream, Sub Stream
Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps

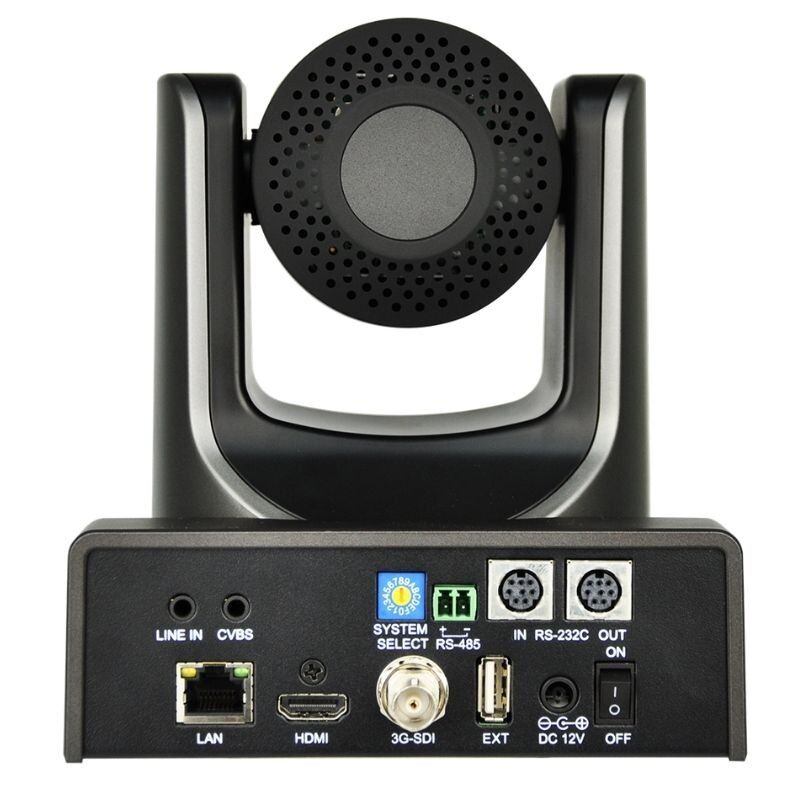

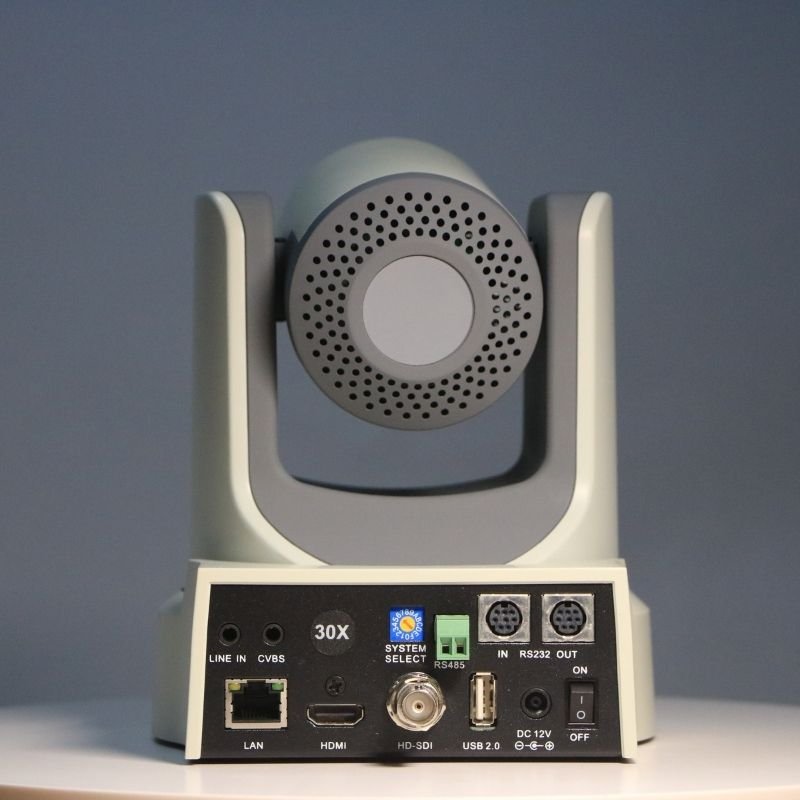

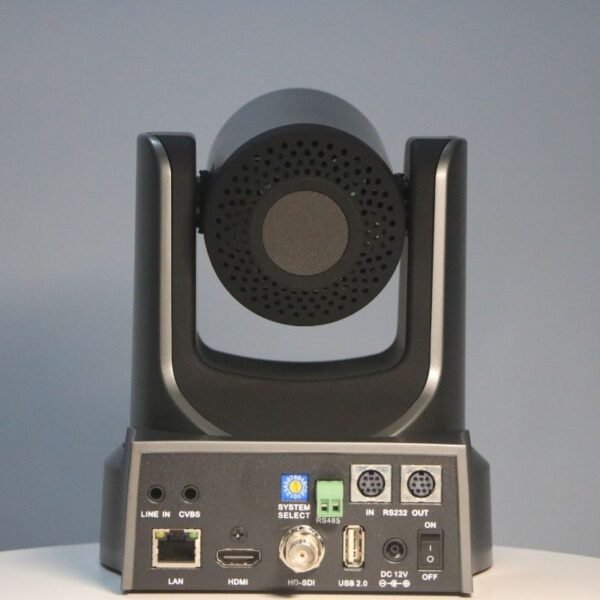

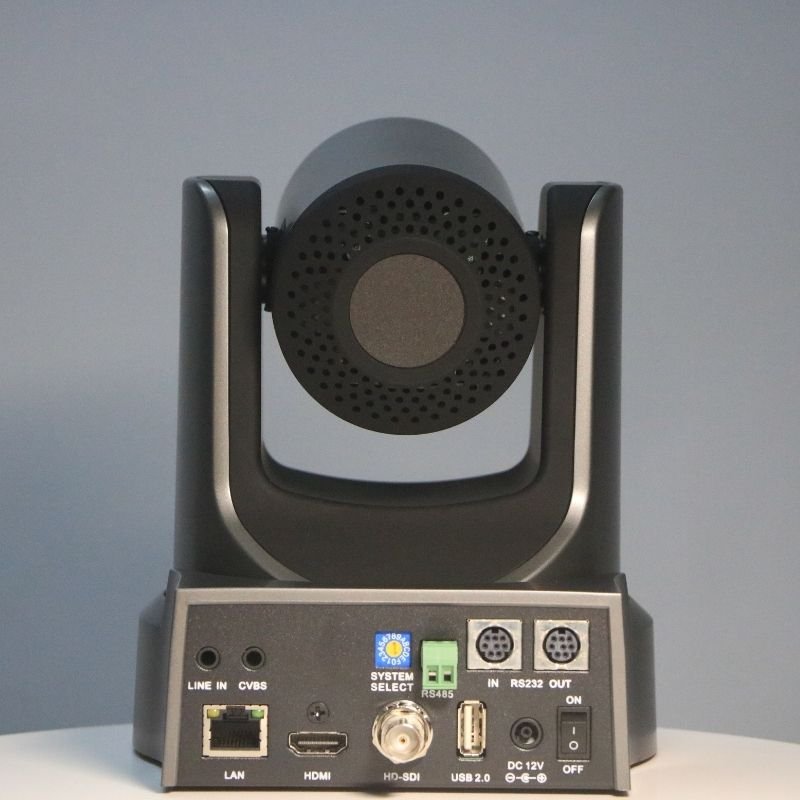

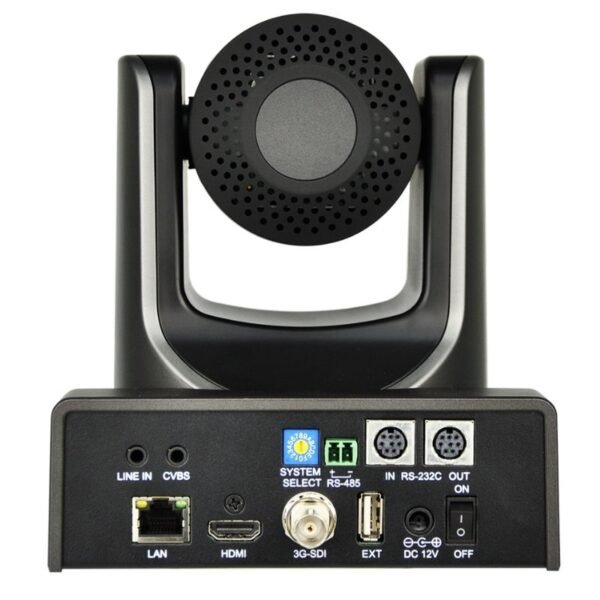

Interface
HDMI Output Version 1.3
SDI output 3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M
SD Output CVBS: 3.5mm mini jack, 1Vp-p, 75Ω, only 480i or 576i, not simultaneous with other outputs
Network Interface RJ45: 10M/100M Adaptive Ethernet Ports
Audio Interface 1-ch: 3.5mm Audio Interface, Line In, for IP embedding
USB Type A female jack, for firmware update
RS232 In 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
RS232 Out 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
RS485 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P

1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol:  VISCA network use only

1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P

JEITA type (DC IN 12V)

General
Input Voltage DC 12V
Current Consumption 1.0A (Max)
Power Consumption 12W (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Color Dark Gray, White
Dimensions (W x H x D) 169mm x 142mm x 164mm
Weight 1.35 kg
Included Remote Control/RS232 cable/Power



1080P60 NDI Live Streaming PTZ Cameras 12x 20x 30x SDI Specification Download:

HD620 1080P60 Video Conference Camera Specification



1080P60 NDI 12x/20x30x Optical PTZ Camera Broadcast and Conference, HDMI, 3G-SDI, IP Streaming, CVBS control Application:

  • Video Communications (Meetings, Video conferencing, Skype meeting, Microsoft teams, Business, Webinars,
  • Tele-medicine system, Tele-medicine cart, Health care, Distance Learning, Finance, Banking, Legal agency, Government, Webcasting)
  • Live Video Production (Events, Conferences, Studios, Education system, Online classroom, video recording)
  • Live Streaming (Church Services, Worship, Product Launches, Live sports, Live Broadcasting, Events live streaming)
