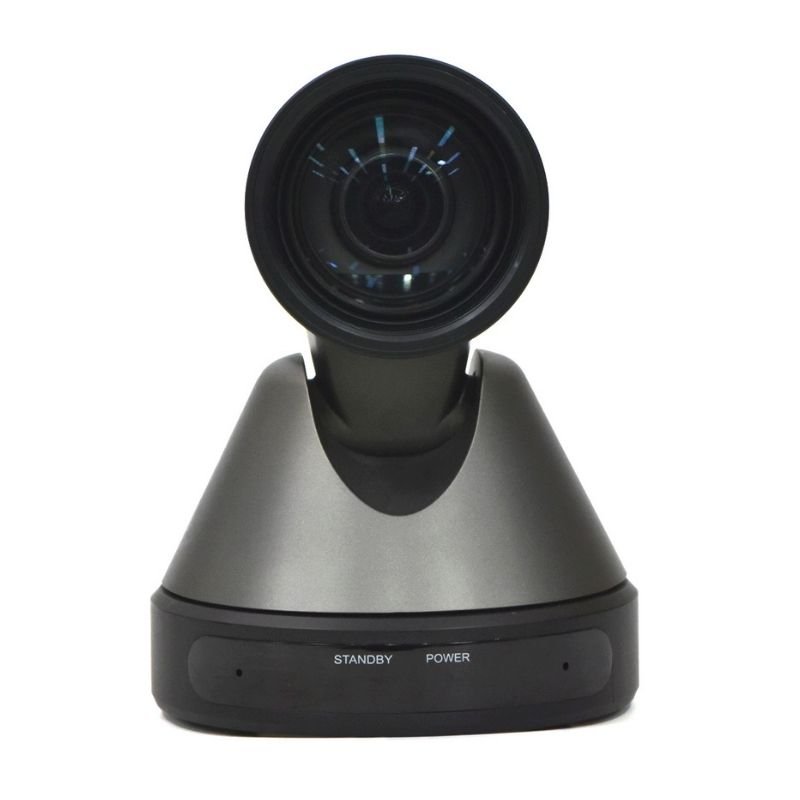

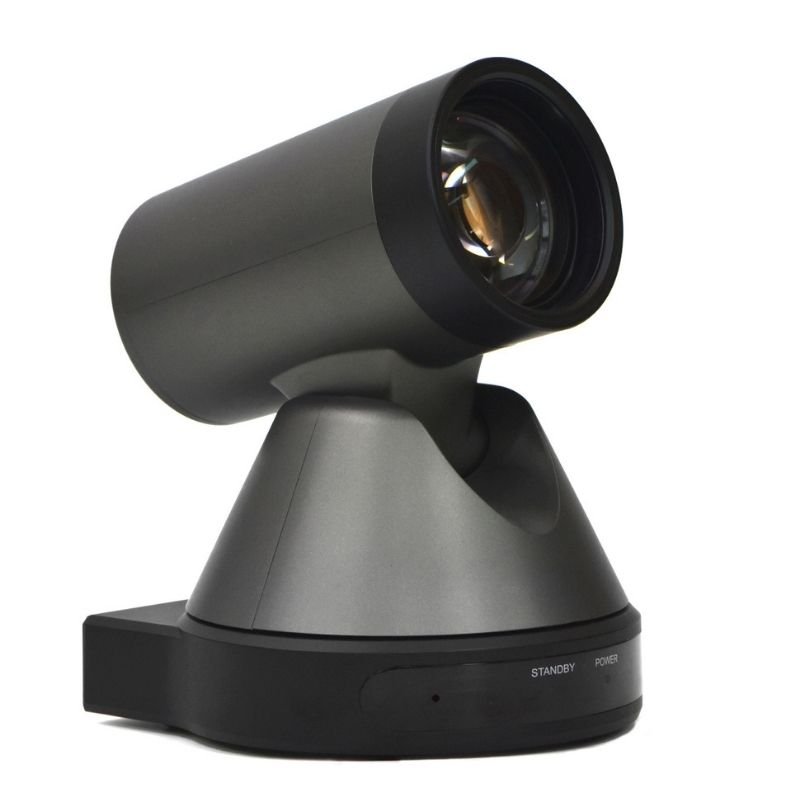

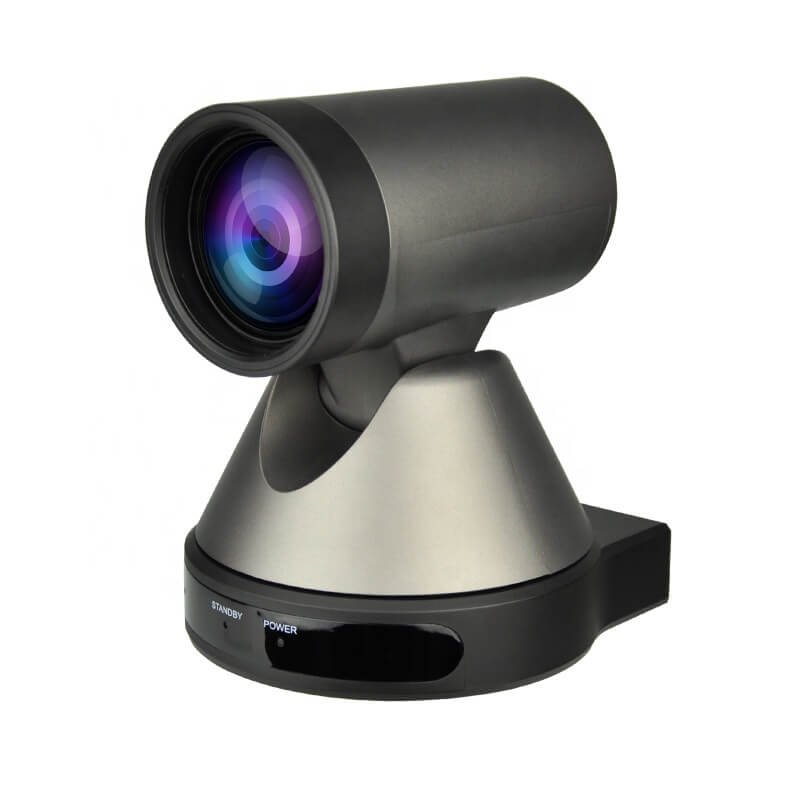

AVLink Powerful HD PTZ cameras built with USB 3.0 connectivity for plug and play, built-in Audio Microphone, extremely suitable for business, video conferencing, distance interview, live streaming applications.
| Model | V71U2 |
|---|---|
| Sensor | Panasonic |
| Video Output | 1080P |
| Zoom | 12x |
| Port | USB 3.0 |
| Color | Dark |
1080P USB3.0 Webcam Streaming Conference Camera FHD 12x Built in Audio Microphone, Cheap, send inquiry to aliceavlink@gmail.com now!
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.5 protocol.
Built-in microphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.
Apply Panasonic’s 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
Compatible with USB 3.0 and USB 2.0, support UVC v1.5 protocol, and support almost all video conference software on the market.
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
Using RS232/USB, all the parameters of the camera can be remote controlled by the high-speed communications.
Support Slice and SVC encoding mode, adapts to video conference of advance USB application.
Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure
Base on customer needs, transmit infrared code value
| Camera | |||
| Video CMOS Sensor | 1/2.7”, CMOS, Effective Pixel: 2.07M | ||
| Frame Rate | 1080P, 720P, 540P, 480P, 360P, 240P etc. | ||
| Lens Zoom | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | ||
| Horizontal Field of View | 72.5° ~ 6.9° | ||
| Vertical Angle of View | 44.8° ~ 3.9° | ||
| Min Lux | 0.05 lux @ (F1.8, AGC ON) | ||
| Shutter Speed | 1/30s to 1/10000s | ||
| White Balance | Auto, Indoor, Outdoor, One-Push, Manual | ||
| Backlight Compensation | Support | ||
| Digital Noise Reduction | 2D&3D Digital Noise Reduction | ||
| Video S/N | ≥55dB | ||
| Image Freeze | Support | ||
| Ceiling Installation | Supported | ||
| Vertical Flip & Mirror | Supported | ||
| Working environment | INDOOR | ||
| Mechanical | |||
| Pan Rotation Angle | ±170° | ||
| Tilt Rotation Angle | -30°~ +90° | ||
| Pan Speed (per second) | 1.7° ~ 100°/s | ||
| Tilt Speed (per second) | 0.7° ~ 28°/s | ||
| Presets | 255 Presets | ||
| Number of Preset | 0.1° | ||
| PTZ Control Protocol | Sony VISCA and PELCO D/P | ||
| USB Features | |||
| Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | ||
| Color System / Compression | YUV 4:2:2 / H.264 / MJPEG | ||
| Video Format | YUY2 (BULK): max to 1080P@60fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@60fps H.264 SVC: max to 1080P@30fps MJPEG: max to 1080P@30fps | ||
| Audio on USB | Support | ||
| USB Video Communication Protocol | UVC 1.5 | ||
| UVC PTZ | Support | ||
| Interface | |||

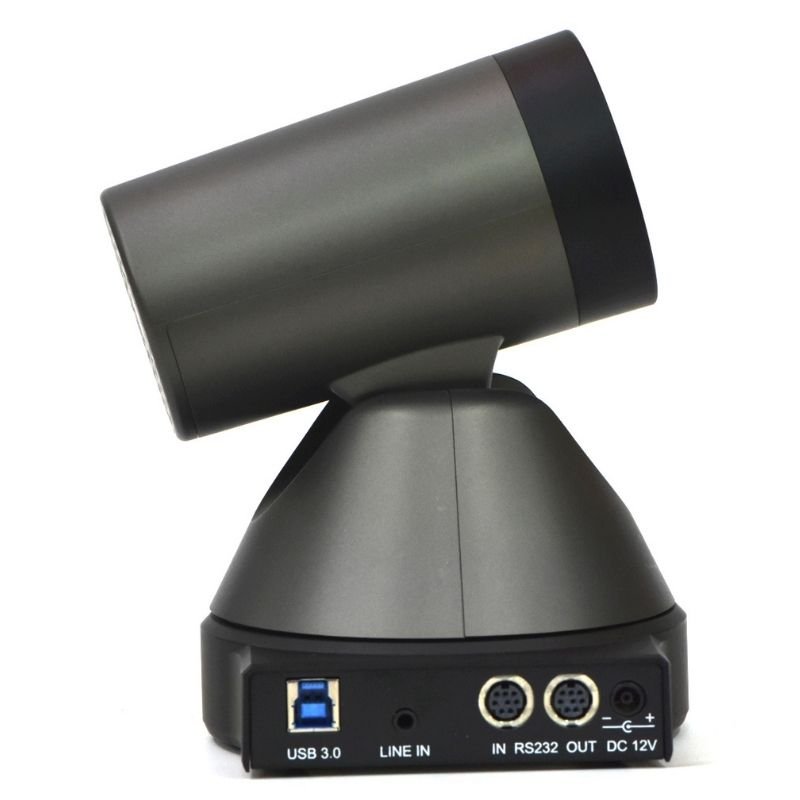

| USB | 1xUSB3.0: Type B female jack | ||
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | ||
| RS232 In | 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | ||
| RS232 Out | 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | ||
| Power Jack | JEITA type (DC IN 12V) | ||
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | ||
| General | |||
| Input Voltage | DC 12V | ||
| Current Consumption | 1.0A (Max) | ||
| Power Consumption | 12W (Max) | ||
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) | ||
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) | ||
| Dimensions (W x H x D) | 128.5mm x 118mm x 156.2mm | ||
| Weight | 0.91 kg | ||
V71U2 USB3.0 HD Video Conference Camera Specification
