NDI PTZ Camera SDI HDMI 1080P60 UV950-NDI, used in live streaming, church broadcasting, remote medicine, send inquiry to aliceavlink@gmail.com
In 2021, the online economy such as web conferences, live streaming, and distance learning will be more active. However, many non-professional users are limited by equipment, cables, professional technology and other factors. They are using traditional live streaming systems or wiring construction and operation in the conference system, which is deeply complicated. Don’t worry, AVLink will offer our secret weapon:
UV950-NDI built-in the NDI®|HX protocol

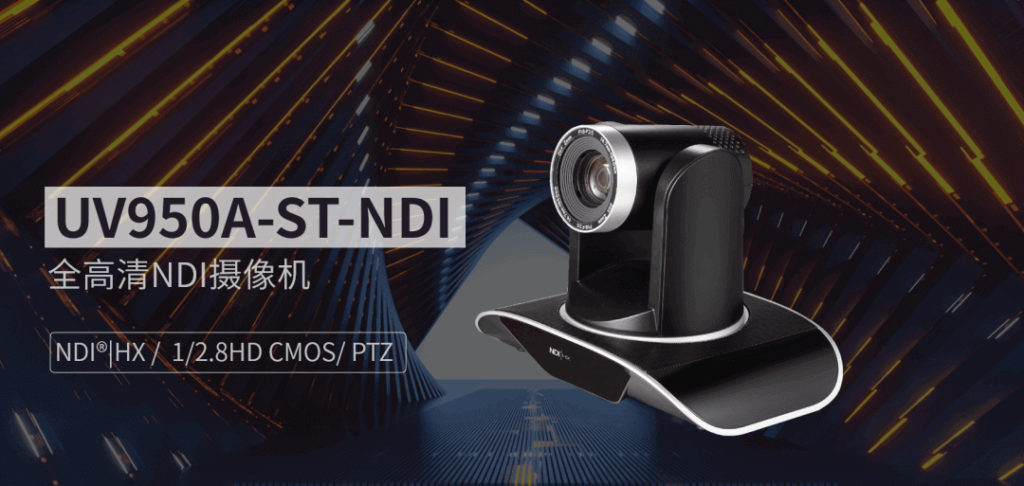

Full HD NDI PTZ Camera SDI HDMI
The UV950-NDI series has built-in NDI®|HX protocol, which can output 1080P60 output under low bandwidth, and the picture quality is smoother and clearer. High-quality wide-angle, a variety of optical zoom lenses, equipped with rich interfaces, advanced ISP processing technology and algorithms and other features, so that it can be used in high-end conference rooms, academic lecture halls, large stadiums and other high-level video production
1. No need to purchase a separate license, built-in NDI®|HX
Supporting NDI®|HX protocol, any terminal with NDI network interface protocol in the local area network can freely access low-latency, high-quality video signals, remotely control across the network, and build a flexible live broadcast system without the need for an IP decoder. The advantage of low bandwidth allows NDI®|HX to adopt WiFi wireless connection, or network link with speed lower than gigabit, which is very convenient for deployment. It can be used by remotely controlling the camera and its parameters through the NDI IP software. It can easily access major live broadcast systems and initiate online conferences quickly and efficiently, especially in the education industry that has strict requirements on video quality and transmission rate.
2. 1/2.8 inch CMOS, 72.5° wide-angle lens, a variety of optical zoom lenses are available
Equipped with a 1/2.8-inch 2.07 million pixel CMOS image sensor with a maximum resolution of 1920×1080 and an output frame rate of up to 60 frames per second, reflecting the delicate shooting effect.
The 72.5° wide-angle lens 12X optical zoom, collect ultra-wide vision images, can obtain more excellent close-up shots, especially when connected to meetings in multiple locations. There are also 20X and 30X optical zoom lenses available to meet your different needs.
3. Even exposure, no fear of backlight
UV950-NDI dynamic exposure control algorithm based on the human eye model provides uniform exposure and strong layering, greatly improving the quality of shooting. Using the industry’s advanced WDR (Wide Dynamic Range) CMOS sensor, combined with the exposure dynamic control algorithm processing, in an environment with strong contrast between light and dark (such as backlight), it can clearly capture all scenes. For people who often attend meetings, the lighting conditions in many meeting places are not very ideal, so the photographed faces are often dark and unclear. After the use of UV950-NDI, the presentation of the details of the characters will be substantially improved.
4. Right and left, pitching quickly and smoothly, seamless transition
With the body rotation of ±170° left and right, -30°+90° tilt, and a 75.2° wide-angle lens with 12X optical zoom, the shooting freedom is further expanded. Support NDI PTZ function, smoothly mixed pan, tilt and zoom actions, can achieve seamless professional transition and ensure smooth switching of cameras. The preset position can be quickly recalled, and the speed level can reach 100°/s, and the pitch can reach 45°/s, which can quickly capture the target. Through the scene file setting, the scene file function of the menu can be used between different cameras to realize quick setting.
5. Equipped with IP keyboard controller, suitable for large-scale production system

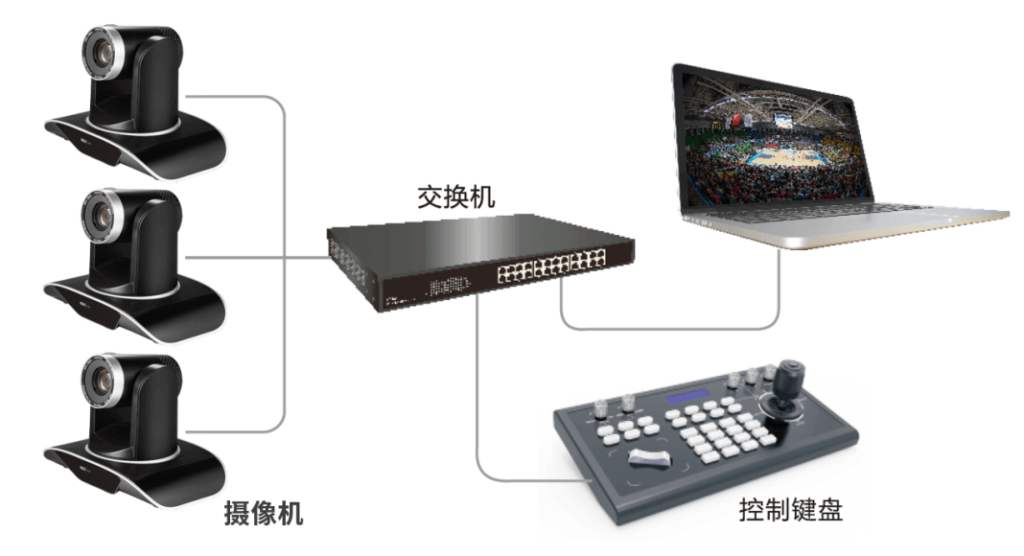

Using KBD2000 network control keyboard, as long as it is in the same local area network. Supports quick camera switching, quick setting of common camera parameters, etc. A four-dimensional control lever is used to control the speed of the camera (or pan/tilt). It adopts multiple control interfaces of RJ45, RS422, RS485, RS232, and can connect up to 255 cameras.
Continuing the advantages of the NDI®|HX protocol, taking into account the quality of video transmission and the one-to-many distribution of network IP streams, it is not only suitable for general webcast live shooting, but also very suitable for meetings that require simple and rapid deployment. While quickly realizing video transmission and acquisition, it maintains the high quality of the video signal and provides convenient pan/tilt control. With the functions of full HD, wide viewing angle, multiple interfaces, and multiple protocols, the UV950-NDI series of full HD PTZ cameras will be more and more popular in corporate video conferences, education and training, and webcasts.
